Apprentice practice tool
Electrical Apprentice Training Practice Online
Use WireMate as an online practice tool for electrical apprentice training. Practise circuits, switching, testing and fault-finding from your browser.
Then $5.99 AUD/month. Cancel anytime.
Why it helps
Understand the circuit before testing your prediction.
Apprentices need repetition. WireMate gives students a practical online space to build wiring confidence between class, TAFE, study and supervised site work.
Skills
Training practice areas
Lighting logic
Trace one-way, two-way and intermediate switching paths and explain how the load is controlled.
Series and parallel
Calculate a prediction before building, then compare branch currents and voltage drops.
Socket outlets
Identify active, neutral and earth terminals in the Pro socket-outlet practice example.
Stop/start control
Operate the Pro DOL control exercise and distinguish the contactor coil from its holding contact.
Motor connections
Practise labelled star/delta terminal connections in Pro, with the model's stated limitations visible.
Testing
Choose a measurement that can distinguish your explanation from another possible circuit condition.
Fault evidence
Use Pro's test sheet to relate an observation to a diagnosis and a separate retest result.
Clear drawings
Plan a circuit in the Circuit Builder. Its drawing checks are separate from simulator measurements.
Worked simulation example
Explain a stop/start holding circuit
In Pro → Essential circuits, open DOL starter: stop, start and hold. This exercise models an isolated 24 V control circuit, with a normally open holding contact across Start.
1. Predict before operating
With Stop and the overload contact healthy, pressing Start should energise K1 and close its holding contact.
2. Release Start
K1 should remain energised through the holding path. Explain why releasing Start no longer opens the entire coil circuit.
3. Stop and trip
Press Stop, then separately test an overload trip. Either should interrupt the coil path, release K1 and open the holding contact.
What to look for: The contactor remains on after Start is released, but remains off after a stop or trip until the healthy circuit receives a new Start command.
This is control-circuit practice, not a three-phase motor performance model or a complete starter design. WireMate is independent study software, not official TAFE, RTO or assessment material.

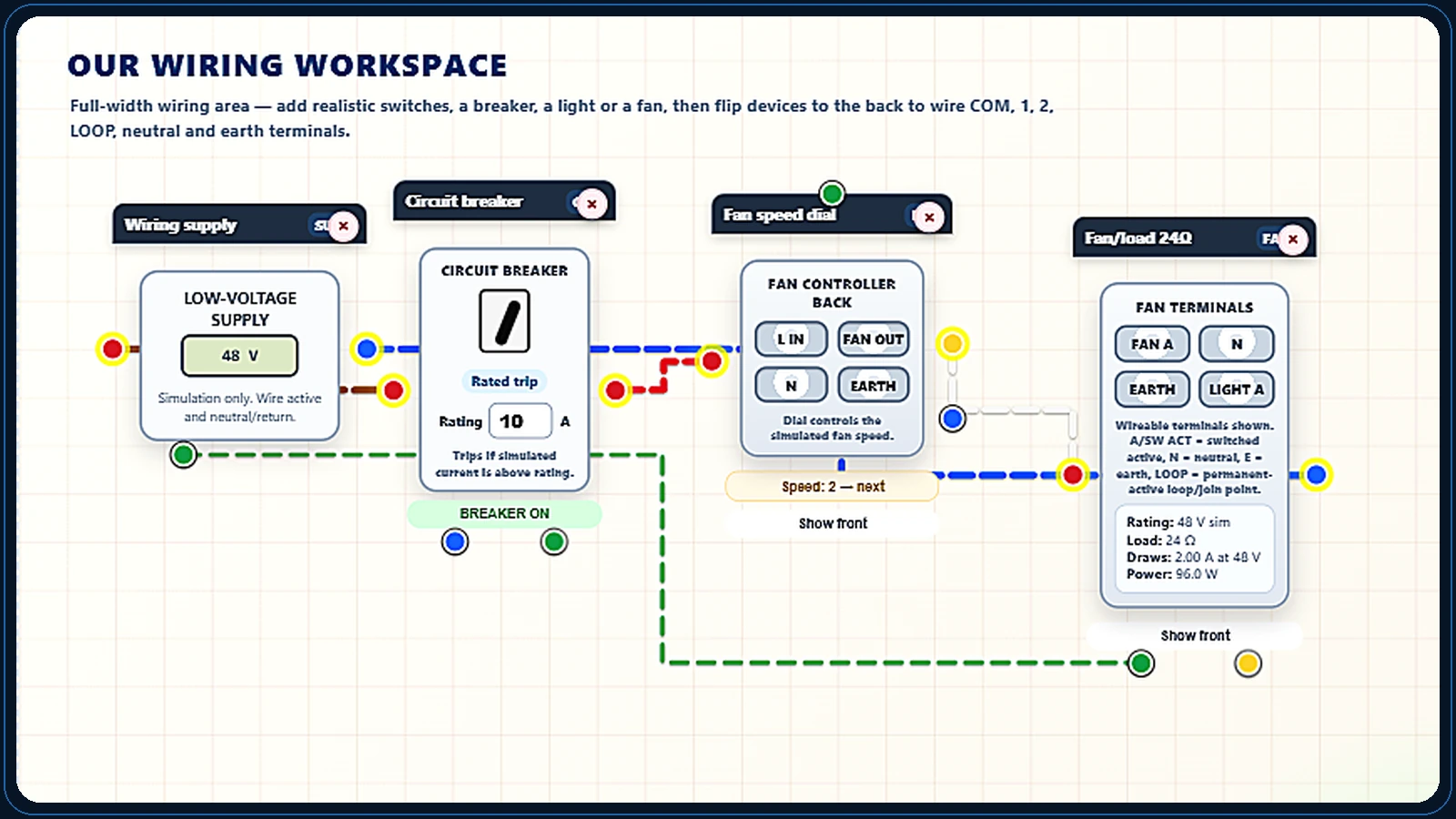

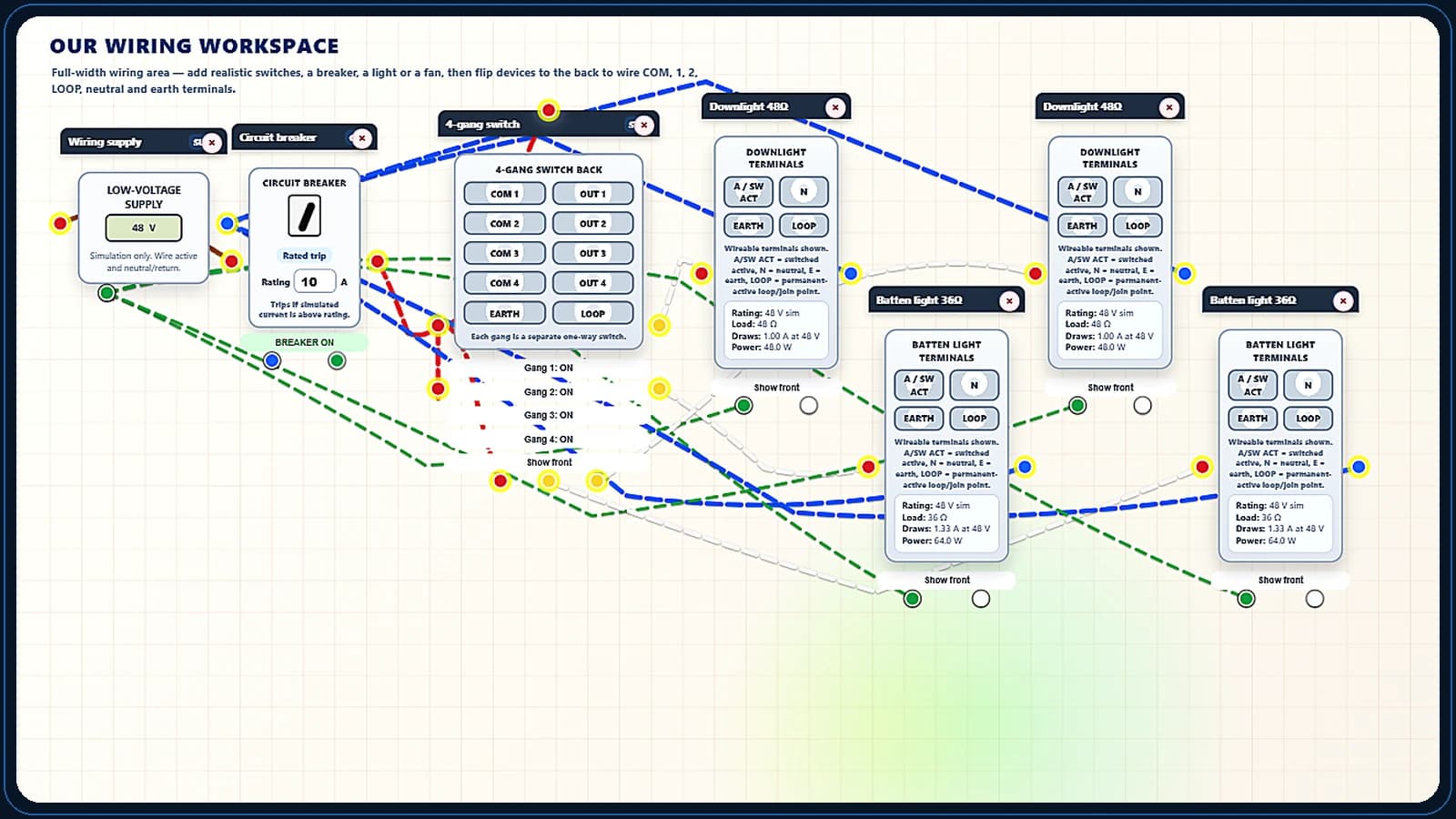

Real simulator visual
Made for learning by doing
WireMate is not a textbook page. It is a place to connect, test, compare and repeat the wiring logic until it starts to stick.
Quick answers
Common questions
Is WireMate suitable for electrical apprentices?
Yes. WireMate is designed for apprentices and electrical students who want more practical repetition with circuit logic.
Can WireMate be used alongside TAFE or trade school?
Yes. It can support revision and extra practice, but it does not replace your official course, teacher, supervisor or safety requirements.
What does WireMate cost after the trial?
Basic is $5.99 AUD/month and Pro is $9.99 AUD/month. Eligible new subscribers can start a 3-day trial through Stripe Checkout. The Pro library, Find the 2 Faults and Pro study modules require Pro access.
